MWH Battery LifePO4 Battery Energy Storage System Container For Commerce and Industrial Application
Update: 2023/2/27 View:
- Brand: 3ELEAD
- Type: 3ENER-001
- Price: RMB
- Promotion: RMB ( 0 Customers Bought)
Introduction

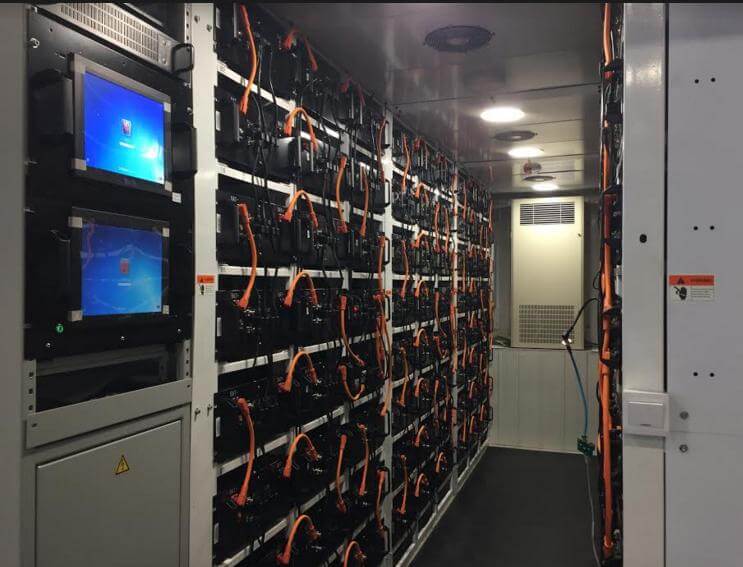

3ELEAD's containerized battery energy storage solution is a complete, self-contained battery solution for utility-scale energy storage. It puts batteries, A/C, UPS, inverter and auxiliary equipment in a single container or separated based upon site conditions.
We provide customers with industry leading battery CATL,BYD,EVE cells and robust structural design, a dedicated Pre-sales Technical Solution team that will work out the most fit solutions upon users' demand and actual conditions.
Please contact us for more details, we'd be happy to support!
|
DC SIDE
|
|||
|
System
|
Module
|
Rack
|
Bank
|
|
Rated capacity
|
280Ah
|
280Ah
|
6720Ah
|
|
Rated operating voltage
|
64V
|
512V
|
512V
|
|
Voltage range
|
56~72V
|
448~576V
|
448~576V
|
|
Rated charging & Discharging current
|
140A
|
140A
|
3360A
|
|
Rated energy
|
17.92kWh
|
143.36kWh
|
3440kWh
|
|
AC SIDE
|
|||
|
Power
|
2400kVA
|
||
|
Input voltage
|
480V
|
||
|
Input frequency
|
60Hz
|
||
|
Power factor
|
0.99
|
||
|
Output voltage
|
480V
|
||
|
Output frequency
|
60Hz
|
||
|
SYSTEM PARAMETERS
|
|||
|
BESS Container Dimensions (W*D*H)
|
12192*2438*2896mm
|
||
|
UPS Container Dimensions (W*D*H)
|
12192*2438*2896mm
|
||
|
BESS Container Weight
|
42t
|
||
|
UPS Container Weight
|
20t
|
||
|
Ingress Rating
|
IP54 / NEMA3R
|
||
|
Operating Temperature
|
-30~60°C
|
||
|
Operating Humidity
|
0~95%, Relative humidity
|
||
|
Altitude
|
≤2000m
|
||
|
BMS Communication
|
CAN / RS485 / Ethernet
|
||
|
UPS Communication Protocol
|
Modbus RTU, Modbus TCP/IP
|
||
|
COMPLIANCE AND STANDARDS
|
|||
|
UPS Container
|
CSA SPE-1000, IEC 62040-2 (category C3), ISO 9001: 2008, ISO14001: 2004
|
||
|
BESS Container
|
IEC62619, UN38.3, UL1973, UL9540, UL9540A
|
||
