Why Choose us! We are your best partner.
1.Many solution for you,Chips,Power supplier,Customize your product,So easy!
2.Fast responce to your inquiry and feedback
3.Good quality material makes good quality led flood light
4.Strict quality controller system and testing led flood light before shipment

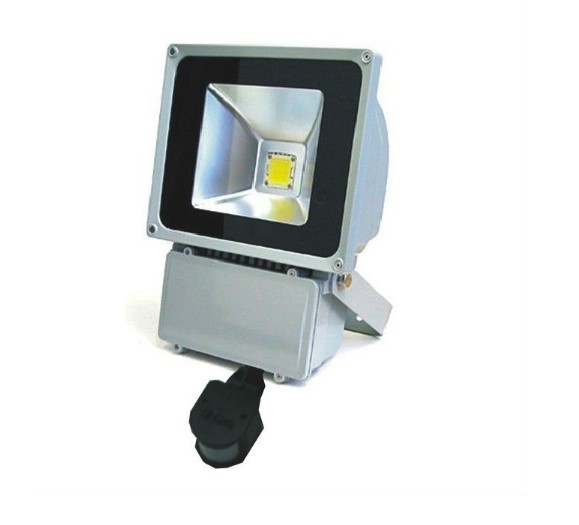

Specialty:
(1)Using high power integrating LED as light source, the lamp’s luminous efficiency can reach 70~80LM/W,
and CRI>70Ra, with good heat dissipation and low light attenuation.
(2)Adopting die casting aluminum alloy electricity box, which have good strength, good heat dissipation property,
and with baking varnish treatment, the lamp is anti-corrosion, can be used in outdoor lighting.
(3)Accommodate to wide input voltage from 100V~240VAC, constant voltage & current output, it can start up at
once with no flickering, lightning protection and PFC function available.
(4)It comes with PIR switch, the induction time and sensor type can be set freely, meet up with certain lighting needs.
Parameter:
| Input Voltage |
AC100~240V |
Color Rendering |
Ra>70 |
| Freqency Range |
50~60Hz |
Beam Angle |
120° |
| Power Factor |
>0.95 |
LED Reduction Rate |
1~3% / 1,000Hrs |
| Power Efficiency |
>87% |
Color Temperature |
2700~7000K |
| LED Working Voltage |
DC18~24V |
Working Temperature |
-20℃~+45℃ |
| LED Power |
100W |
IP Grade |
LED IP65 |
|
PIR IP44/IP65 |
|||
| Working Life-span |
>35000H |
||
|
Induction Distance |
Up to 8M |
Induction Angle |
360° |
| Light time setting |
5Sec.~5min. |
Environmental Setting Environment brightness set |
Day~Night |
| Industion Height |
1 ~4M |
|
|
| LED Luminous Efficiency |
80~90lm / W |
Power line |
VDE 3×1mm2 |
| Wire Connect |
Brown→L Blue→N Yellow/olivine→G |
||
