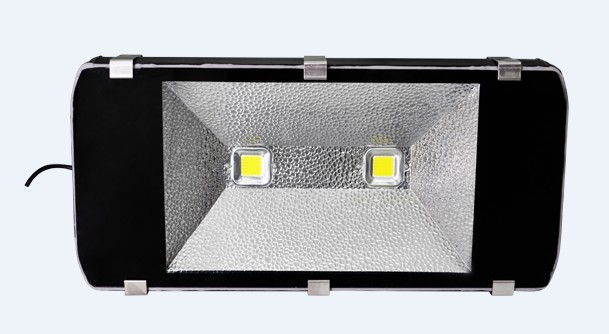

200W LED Tunnel light
- Brand: 3ELEAD
- Type: 3ELD-FL-200W-TN
- Price: RMB
- Promotion: RMB ( 0 Customers Bought)
Why Choose us! We are your best partner.
1.Many solution for you,Chips,Power supplier,Customize your product,So easy!
2.Fast responce to your inquiry and feedback
3.Good quality material makes good quality led flood light
4.Strict quality controller system and testing led flood light before shipment
Speciality：
【1】Adopting integrated Chip as light source, with high LED initial luminous flux 80-100LM/W,
CRI(Ra>70), good heat dissipation, low light degradation.
【2】 Aluminum alloy die cast housing, good strength, high quality heat dissipation. anti corrosion and
baking varnish surface, can be for outdoor using.
【3】Make a dedicated luminous intensity distribution design via the aluminum reflector, there are two options
for lighting distribution, one is for focusing, another is for diffusing.
【4】Wide Input Voltage from 85V~265VAC,constant voltage constant current output, can start up at once, no flicker,
lightning protection, PFC function available.
Parameter：
| Input Voltage |
AC85～265V |
Color Rendering Index |
Ra＞70 |
| FrequencyRange |
50～60Hz |
Beam Angle |
120° |
| Power Factor |
>0.97 |
LED Reduction Rate |
1～3% / 1,000Hrs |
| Power Efficiency |
>87% |
Color Temperature |
2700～7000K |
| LED Working Voltage |
DC30～36V |
Working Temperature |
-20℃～+45℃ |
| LED Power |
200W |
IP Grade |
IP65 |
| Working Life-span |
>35000H |
|
|
| Luminous Efficiency |
80-90lm / W |
Power line |
VDE 3×0.75mm2 |
| Connect wire |
Brown →L / Blue→ N/Yellow or Green →G |
||
Remark:
|
Epistar/ Bridgelux Chip + Meanwell Drive |
||||
|
Model |
Power(W) |
Epistar/Bridgelux (LM) |
Input Voltage(V) |
Dimension(mm) |
|
3ELD-FL-60W-TN |
1*60W |
5100/5400 |
AC85-265V |
360*290*220 |
|
3ELD-FL-80W-TN |
1*80W |
6800/7200 |
AC85-265V |
360*290*220 |
|
3ELD-FL-100W-TN |
1*100W |
8500/9000 |
AC85-265V |
360*290*220 |
|
3ELD-FL-120W-TN |
2*60W |
10200/10800 |
AC85-265V |
560*290*220 |
|
3ELD-FL-150W-TN |
2*75W |
12750/13500 |
AC85-265V |
560*290*220 |
|
3ELD-FL-180W-TN |
2*90W |
15300/16200 |
AC85-265V |
560*290*220 |
|
3ELD-FL-200W-TN |
2*100W |
17000/18000 |
AC85-265V |
560*290*220 |
|
3ELD-FL-240W-TN |
3*80W |
20400/21600 |
AC85-265V |
760*290*230 |
|
3ELD-FL-300W-TN |
4*75W |
25500/27000 |
AC85-265V |
920*290*230 |
|
3ELD-FL-360W-TN |
4*90W |
30600/32400 |
AC85-265V |
920*290*230 |
