PSE/CE/FCC/ROHS/IES supported 20W DC10-28V Input LED flood light
- Brand: 3ELEAD
- Type: 3ELD-FL-20W-DC
- Price: RMB
- Promotion: RMB ( 0 Customers Bought)
Why Choose us! We are your best partner.
1.Many solution for you,Chips,Power supplier,Customize your product,So easy!
2.Fast responce to your inquiry and feedback
3.Good quality material makes good quality led flood light
4.Strict quality controller system and testing led flood light before shipment
Speciality：
【1】Adopting integrated Chip as light source, with high LED initial luminous
flux 80-100LM/W, CRI(Ra>70), good heat dissipation, low light degradation.

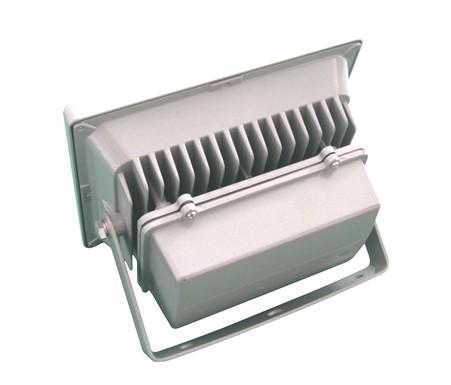

【2】Aluminum alloy die cast housing, good strength, high quality heat dissipation.
anti corrosion and baking varnish surface, can be for outdoor using.
【3】Make a dedicated luminous intensity distribution design via the aluminum reflector,
there are two options for lighting distribution, one is for focusing, another is for diffusing.
【4】Supply electricity by using low voltage and direct current, gives high safety factor,
suitable for lighting in outlying area and the wild.
Parameter:
Input Voltage
DC10~28V
Color Rendering Index
Ra>70
Power Efficiency
>88%
Beam Angle
100°
LED Working Voltage
DC30~36V
LED Reduction Rate
1~3% / 1,000Hrs
Total Power
22W
Color Temperature
2700~7000K
Luminous Efficiency
80~100lm / W
Working Temperature
-20℃~+45℃
Working Life-span
>35000H
IP Grade
IP65
Power line
VDE 2×1mm2
Connect wire
Brown→ “+” Blue→“-”
Packing specification：
Packing Dimension：（L）568×(W) 344×(H) 264mm 4PC/CTN 12Kg
Attentions：
1. Only professional electrician can install the lamp, please check the lamp
very carefully before installation.
2. Please install the lamp follow up the installation procedure, make sure the
screw has been wrested very tightl,the wires have been connected properly.
