Speciality��

��1��Adopting integrated Chip as light source, with high LED initial luminous flux 80-100LM/W,

CRI(Ra>70), good heat dissipation, low light degradation.

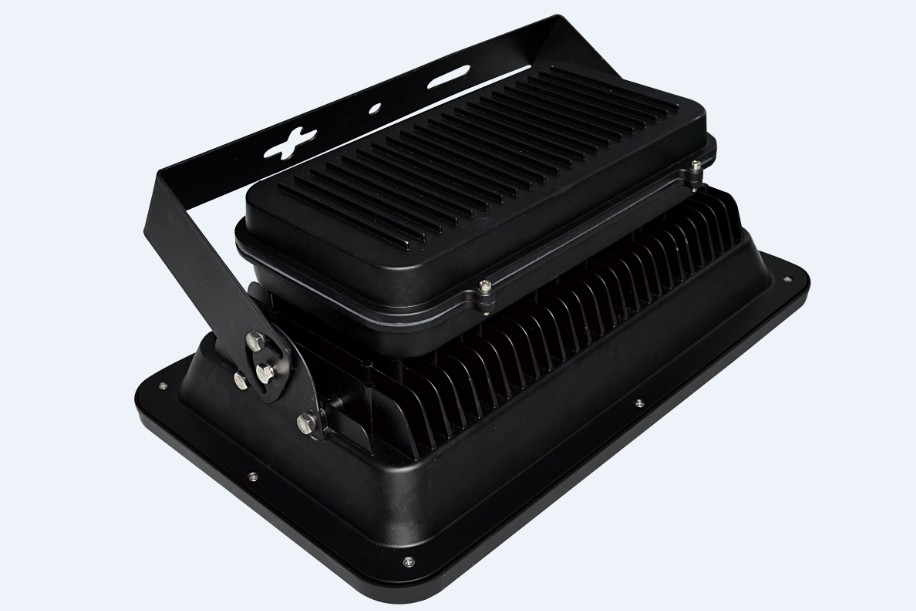

��2�� Aluminum alloy die cast housing, good strength, high quality heat dissipation. anti corrosion and

baking varnish surface, can be for outdoor using.

��3��Make a dedicated luminous intensity distribution design via the aluminum reflector, there are two options

for lighting distribution, one is for focusing, another is for diffusing.

��4��Wide Input Voltage from 85V~265VAC,constant voltage constant current output, can start up at once, no flicker,

 lightning protection, PFC function available.

Advantages:

1). IES file, Dialux solution, detail datasheet can be offered

2). Advanced thermal design, High quality LED chips and driver

3). LED efficiency can reach 100-120lm/w. high CRI

4). Short lead time: 3-5days for sample, 20days for 2000pcs

5). Triac, 0-10V, DALI dimming

6). Lifespan>50,000hrs, 5 Years Warranty

 7). 30W-500W;100-120LM/W;AC85-277V/AC304V,DC12V/24V;2700-7000K

 8). CE and Rohs SAA ,EMC,ETL,GS,RoHS,SAA,ULpproved;

 9). Saves more than 67% energy compared with the traditional lamp.

10). Long life, the chips, a life span of 50,000 hours.

11). No UV & IR. It won’t distribute ray radiation

12). Eco-friendly, No Hg & Xe, or other harmful element. Recyclable, also it won’t generate EMI

13). Glare deeply embedded structural design, No bad glare and stroboscopic

14). Protection level reaches IP65.

15). Easy for installation

16). Standard 5 Years Warranty.

Parameter��
