20W Rechargable and portable flood light CE/ROHS approved
- Brand: 3ELEAD
- Type: 3ELD-FL-20W-RP-W
- Price: RMB
- Promotion: RMB ( 0 Customers Bought)
Why Choose us! We are your best partner.
1.Many solution for you,Chips,Power supplier,Customize your product,So easy!
2.Fast responce to your inquiry and feedback
3.Good quality material makes good quality led flood light
4.Strict quality controller system and testing led flood light before shipment
Specialty:
1.High light efficiency imported LED chip, with patent technology integration encapsulation,
light source with high efficiency.
2. The floodlight use Lithium battery driver and it can be chargeable.
3. It can be used in outdoor activities lighting (white).
4. It need to turn off the light when the battery's voltage is lower than setting voltage,or it will
damage the battery.
5. It can work when using the DC12V input without connecting battery. It has two ways for the lighting.
6.Lithium battery charging indication: when it is charging and the indicator is red, it is green color when
full, no charge, indicator is not shine.
7. Lamp is equipped with discharge characteristic under voltage lock to prevent the LED in low pressure
conditions from damaging the leds due to battery voltage recovery.
Description:

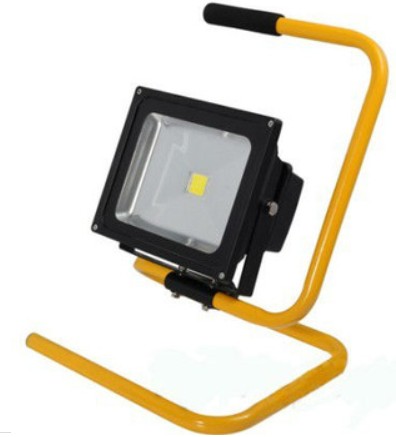

Dim-Portable&rechargeable 20W led floodlight is a kind of emergency dimmable led flood light with
multifunction and chargeable. Lifespan is up to 300 times of using. New appearance, Compact structure,
and convenient to carry. Charging and discharging indicator:Red light means charging and green light
means full power. High efficiency Integrated light source of LED and perfect IC of power managing guarantee
the stabilization of constant current output and extend the lifespan of LED. Lithium Ion battery with high
volume could guarantee over continuous 4 hours lighting needs. The protection fender itself could prevent
battery core from the harm outside.
Parameters:
Adapter
|
Input Voltage |
85-240VAC |
|
Output Voltage |
12±0.5VDC |
|
Efficiency |
≥85% |
|
Car Adaptor |
Input Voltage 10-16VDC |
|
Output Current 1.5A |
LED Parameter
|
LED |
1 PC |
|
Working Voltage LED |
DC30±0.8V |
|
Led Consumption LED |
18W |
|
System Consumption |
20W |
|
Led Luminous Efficiency LED |
70-80 Lm /W |
|
Led Initial Flux LED |
600~700Lm |
|
Junction Temperature |
≤80°C |
|
Color Temperature |
2700-7000K |
|
lamp’s Efficiency |
>80 % |
|
Illuminance Uniformity |
>0.5 |
|
Color Rendering Index |
Ra>75 |
|
Light Distribution |
Symmetric/round spot |
|
Light Design |
LED+ Reflective shield secondary distribution of light |
|
Cycle life |
≥300 times |
|
Capacity |
4400mAh/14.8V |
|
Charging Time |
2.5(2200mAh)/5(4400mAh)Hrs |
|
Working Time |
1.5(2200mAh)-4.0(4400mAh)Hrs |
|
Operating Temperature |
Charging 0 ~ +45°C |
|
Discharging -20°C~ +60°C |
|
|
Storage Temperature |
-20°C~ +70°C |
|
IP Grade |
IP65 |
|
Life-span |
≥50000Hrs |
|
Net weight |
1.80Kg |
|
The color of the lamp shell |
Yellow/black/ silver |
After pressing the switch for 3 seconds, the lamp will be turned off. It takes 3 seconds for pressing the switch to turn on or turn off the lamp.
