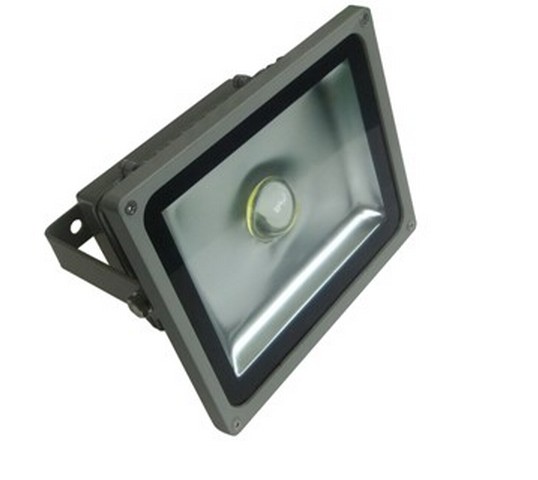

30°20W AC100-240V Input LED flood light
- Brand: 3ELEAD
- Type: 3ELD-FL-20W-CL1-A30
- Price: RMB
- Promotion: RMB ( 0 Customers Bought)
Why Choose us! We are your best partner.
1.Many solution for you,Chips,Power supplier,Customize your product,So easy!
2.Fast responce to your inquiry and feedback
3.Good quality material makes good quality led flood light
4.Strict quality controller system and testing led flood light before shipment
Specialty：
1. Adopting integrated Chip as light source with high lighting efficiency (80-100LM/W) , high CRI(Ra>70),
good quality heat dissipation, low light degradation.
2. Aluminum alloy die cast housing, good strength, high quality heat dissipation. anti corrosion and baking
varnish surface, can be for outdoor using.
3. Distributing light with optical lens” design, gather the light to appropriate angle, to achieve a maximum
utilization of the LED lighting source, light spot uniformity, no black spots, no shadow, high light transmittance.
4. Distribute the light with aluminum reflector ,achieve the utilization rate as high as possible.
Parameters
| Input Voltage | AC100～240V | Color Rendering Index | Ra＞70 |
| Frequency Range | 50～60Hz | Beam Angle | 30° |
| Power Factor | >0.97 | LED Reduction Rate | 1～3% / 1,000Hrs |
| Power Efficiency | >87% | Color Temperature | 2700～7000K |
| LED Working Voltage | DC18-24V | Working Temperature | -20℃～+45℃ |
| LED Power | 20W | IP Grade | IP65 |
| Working Life-span | >35000H | ||
| Luminous Efficiency | 80～100lm / W | Power line | VDE 3×1mm2 |
| Connect wire | Brown→L Blue→N Yellow or Green→G | ||
Packing specification
Packing Dimension：（L）654×(W) 384×(H) 304mm 4PC/CTN 17Kg
Attentions：
1.A licensed electrician must undertake this installation. Please check the lamp carefully before installation.
2.Please follow up the installation procedures, make sure the screws been wrested very tightly, the wires
been connected properly, as attached installation instruction.
The waterproof joint is only a choice for easy installation and maintenance, not standard come with lamps.
