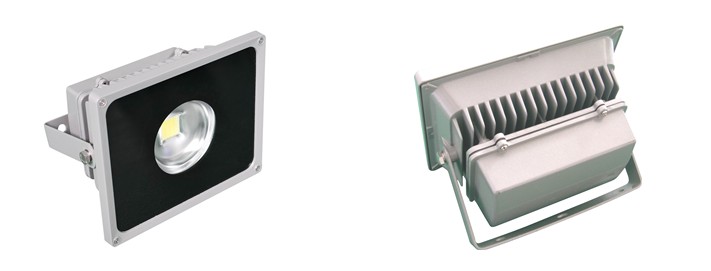

50°10W AC100-240V Input LED flood light
- Brand: 3ELEAD
- Type: 3ELD-FL-10W-CL1-A50
- Price: RMB
- Promotion: RMB ( 0 Customers Bought)
Why Choose us! We are your best partner.
1.Many solution for you,Chips,Power supplier,Customize your product,So easy!
2.Fast responce to your inquiry and feedback
3.Good quality material makes good quality led flood light
4.Strict quality controller system and testing led flood light before shipment
Speciality：
【1】Adopting integrated Chip as light source, with high LED initial luminous flux 80-100LM/W, CRI(Ra>70), good heat dissipation, low light degradation.
【2】Aluminum alloy die cast housing, good strength, high quality heat dissipation. anti corrosion and baking varnish
surface, can be for outdoor using.
【3】Make a dedicated luminous intensity distribution design via the aluminum reflector, there are two options for lighting
distribution, one is for focusing, another is for diffusing.
【4】Wide Input Voltage from 100V~240VAC,constant voltage constant current output, can start up at once, no flicker,
lightning protection, PFC function available.
Parameter：
|
Input Voltage |
AC100～240V |
Color Rendering Index |
Ra＞70 |
|
Freqenucy Range |
50～60Hz |
Beam Angle |
50° |
|
Power Factor |
>0.97 |
LED Reduction Rate |
1～3% / 1,000Hrs |
|
Power Efficiency |
>87% |
Color Temperature |
2700～7000K |
|
LED Working Voltage |
DC30～36V |
Working Temperature |
-20℃～+45℃ |
|
LED Power |
10W |
IP Grade |
IP65 |
|
Total Power |
11W |
Working Life-span |
>35000H |
|
Luminous Efficiency |
80～100lm / W |
Power line |
VDE 3×0.75mm2 |
|
Connect wire |
Brown→L Blue→N Yellow or Green→G |
||
Packing specification：
Packing Dimension：（L）530×(W) 268×(H) 258mm 20PC/CTN 15Kg
Attentions：
1. Only professional electrician can install the lamp, please check the lamp very
carefully before installation.
2. Please install the lamp follow up the installation procedure, make sure the screw
has been wrested very tightly, the wires have been connected properly。
